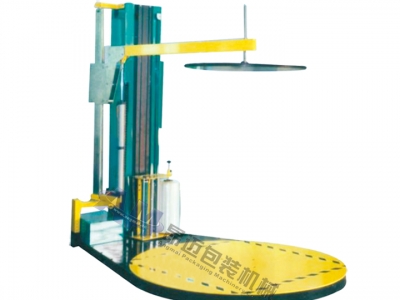

pressurized automatic film wrapping machine

Model

AM-521WA pressurized type

Wrapping height

2100mm, 2400mm and 2600mm optional

Diameter of rotating disc

1500mm,1650mm,1800mm, and 2000mm optional

Height of rotating disc

98mm

Load of rotating disc

Max. 2000kg

Width of shrinking film

W500mm, T12-35microns

Inner and outer diameter of shrinking film

Inner diameter76mm, outer diameter max 350mm

Speed of rotating disc

2-15rpm(adjustable)

Speed of shrinking film seat

0-3m/min (adjustable)

Power supply/power

220V/50-60Hz, 3-phase optional, power of whole unit: 1.35KW

Optional parts: Pre-pulling device for shrinking film, automatic control device for output of plastic film and inclined board.

Characteristics: Many ways of wrapping can be set automatically and manual operation can be used

The appearance of the machine is good-looking, occupying no space

Hiding motor driving system, chain driving is used for lifting of shrinking film seat, firm and safe

Height of article to be wrapped is set automatically with electrical eye, and operation is convenient.

Rotating disc and slow start-up device ensure safety of products

Electromagnetic brake device can adjust tightness of shrinking film in a stepless way, and break off shrinking film automatically, and pre-pulling device can be selected to save plastic film.

PLC is used in the whole unit, ensuring use to be stable and maintenance to be simple.
