Automatic box sealing machine

cover-folding and box sealing machine

2017-09-21 16:34:03

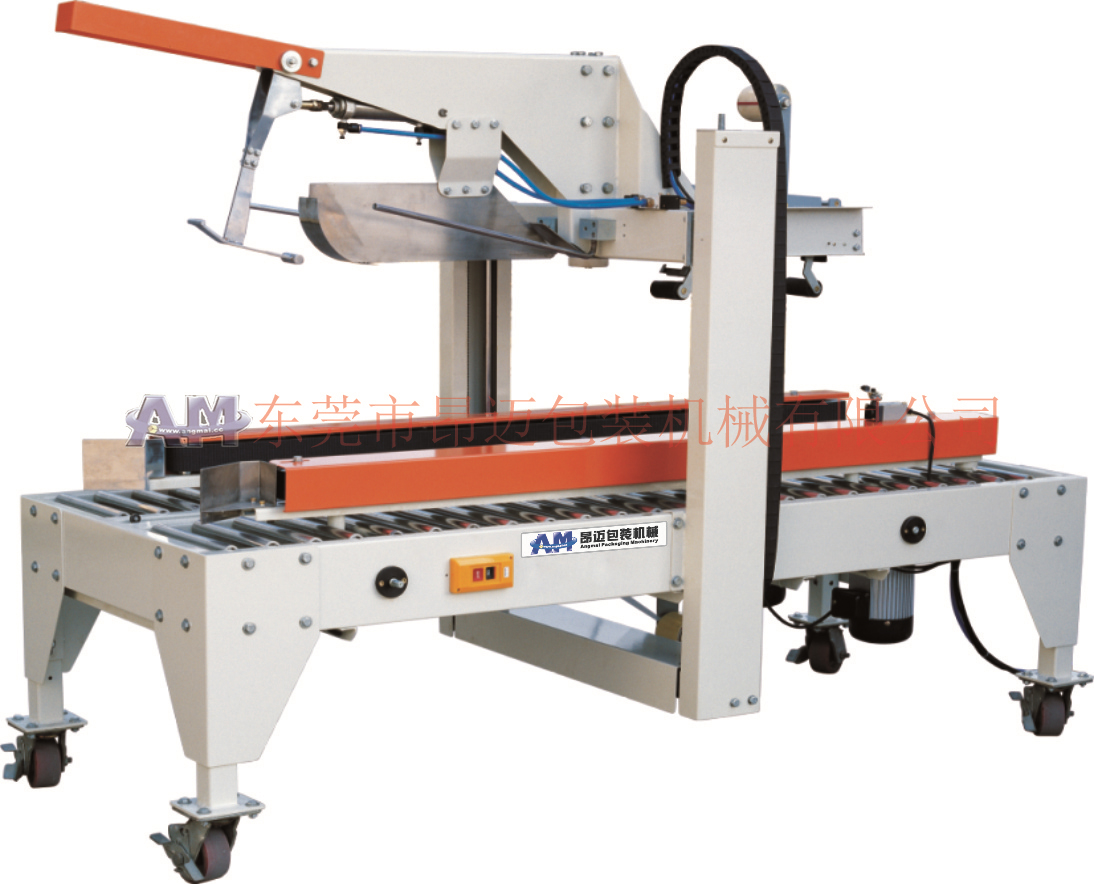

Characteristics of AM-555SF/AM-555SF cover-folding and box sealing machine:

This model of machine is specially designed for linear shape box sealing, which saves labor.
Tape-bonding system is designed with our own patent, and length of head and tail of tape is adjustable.
The machine body is firm and durable, bonding of tape is smooth and stable and spare parts can be supplied at any time.

AM-555SF is used for automatic folding of upper cover and rear cover of carton of uniform specification featuring rapid and flat pressing without corner being folded. Manual adjustment is required for change of specification of carton.

AM-555SFA is used for automatic folding of upper cover and rear cover of carton of different specifications, featuring rapid and flat pressing without corner being folded. Manual adjustment is not required for change of specification of carton, and width and height can be adjusted automatically.

Standard specification:

Model

AM-555SF cover-folding and box sealing machine

Applicable carton

(L)150-500mm(W)150-500mm(H)120-500mm

Power supply

Single-phase 220V/50Hz or specified by the client

Air source

5-6kg/cm2

Box sealing speed

18M/min

Size of machine

L1720*W830*H1500mm

Width of tape

48(2”)-72(3”mm optional

Weight of machine

Approx. 185kg

Model

AM-555SFA automatic cover-folding and box sealing machine

Applicable carton

(L)200-500mm(W)150-500mm(H)120-500mm

Power supply

Single-phase 220V/50Hz or specified by the client

Air source

5-6kg/cm2

Box sealing speed

3-6 cartons/min

Size of machine

L1800*W1160*H1760mm

Width of tape

48(2”)-72(3”mm optional

Weight of machine

Approx. 510kg

Note: Specification of carton not within the scope can be customized.

Model	AM-555SF cover-folding and box sealing machine
Applicable carton	(L)150-500mm(W)150-500mm(H)120-500mm
Power supply	Single-phase 220V/50Hz or specified by the client
Air source	5-6kg/cm2
Box sealing speed	18M/min
Size of machine	L1720W830H1500mm
Width of tape	48(2”)-72(3”mm optional
Weight of machine	Approx. 185kg

Model	AM-555SFA automatic cover-folding and box sealing machine
Applicable carton	(L)200-500mm(W)150-500mm(H)120-500mm
Power supply	Single-phase 220V/50Hz or specified by the client
Air source	5-6kg/cm2
Box sealing speed	3-6 cartons/min
Size of machine	L1800W1160H1760mm
Width of tape	48(2”)-72(3”mm optional
Weight of machine	Approx. 510kg
