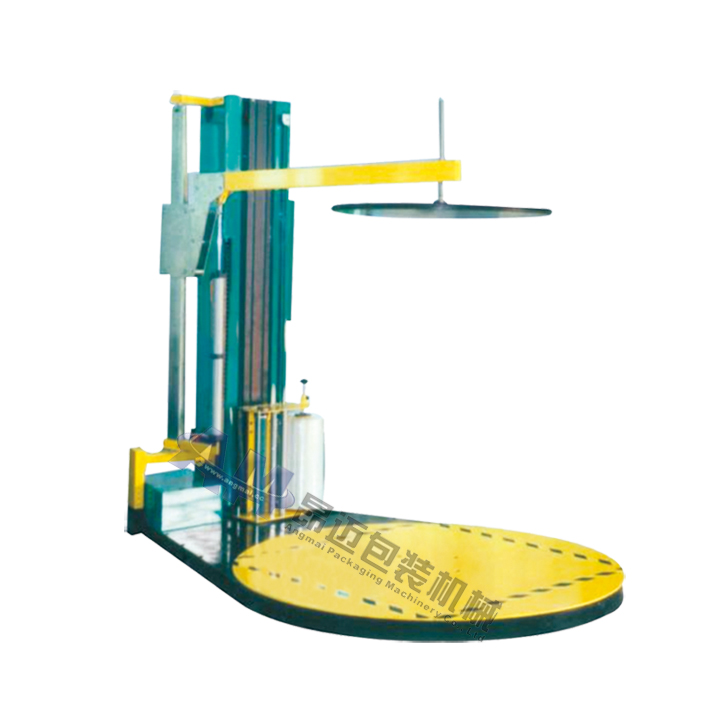

AM-521WA pressurized automatic film wrapping machine:
|
Model |
AM-521WA pressurized type |
|
Wrapping height |
2100mm, 2400mm and 2600mm optional |
|
Diameter of rotating disc |
1500mm,1650mm,1800mm, and 2000mm optional |
|
Height of rotating disc |
98mm |
|
Load of rotating disc |
Max. 2000kg |
|
Width of shrinking film |
W500mm, T12-35microns |
|
Inner and outer diameter of shrinking film |
Inner diameter76mm, outer diameter max 350mm |
|
Speed of rotating disc |
2-15rpm(adjustable) |
|
Speed of shrinking film seat |
0-3m/min (adjustable) |
|
Power supply/power |
220V/50-60Hz, 3-phase optional, power of whole unit: 1.35KW |
|
Optional parts: Pre-pulling device for shrinking film, automatic control device for output of plastic film and inclined board. |
|
|
Characteristics: Many ways of wrapping can be set automatically and manual operation can be used |
|
|
The appearance of the machine is good-looking, occupying no space |
|
|
Hiding motor driving system, chain driving is used for lifting of shrinking film seat, firm and safe |
|
|
Height of article to be wrapped is set automatically with electrical eye, and operation is convenient. |
|
|
Rotating disc and slow start-up device ensure safety of products |
|
|
Electromagnetic brake device can adjust tightness of shrinking film in a stepless way, and break off shrinking film automatically, and pre-pulling device can be selected to save plastic film. |
|
|
PLC is used in the whole unit, ensuring use to be stable and maintenance to be simple. |
|
